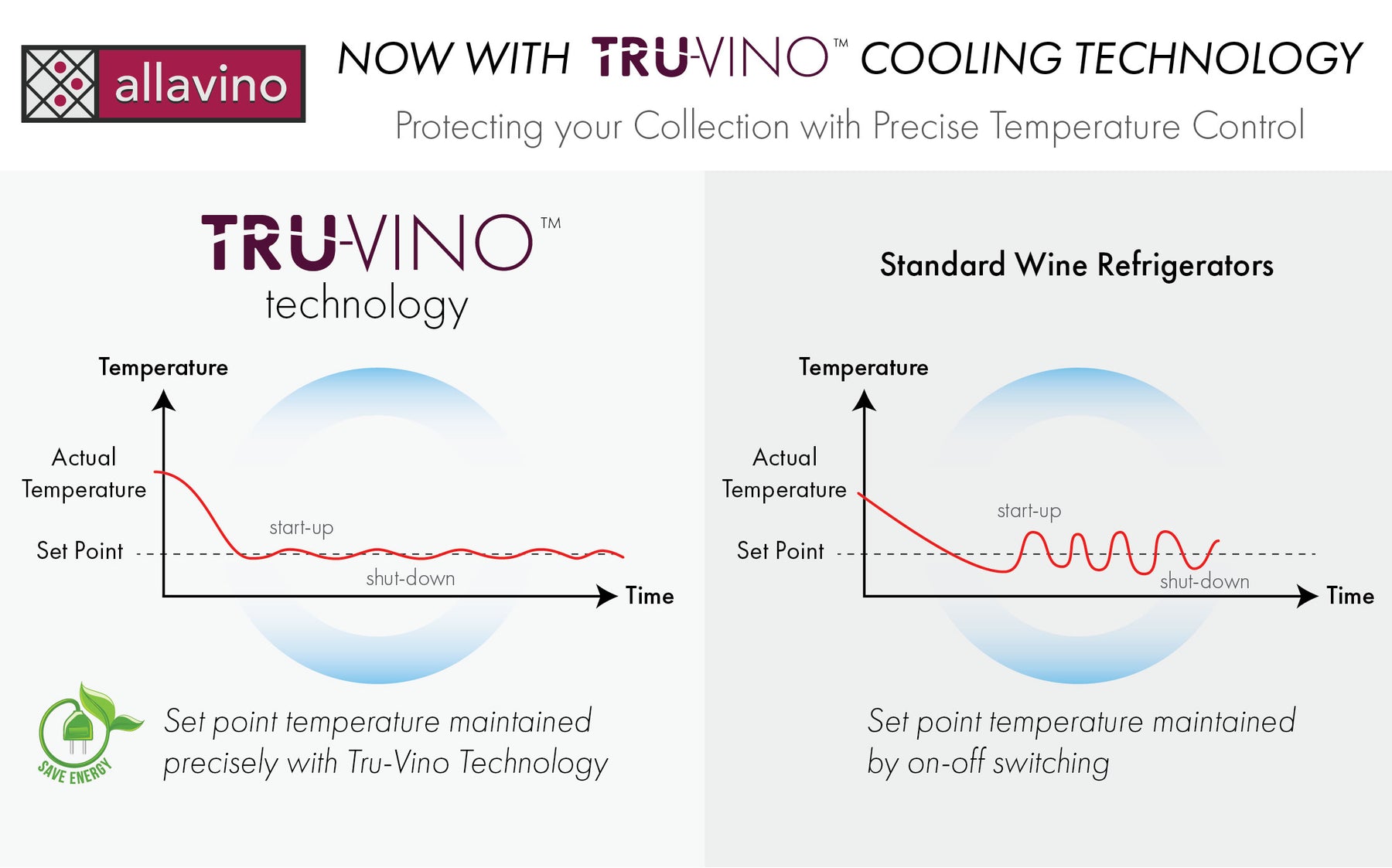

Tru-Vino Cooling Technology
Door Open
Control Panel
Rack Out
Cooler Racks

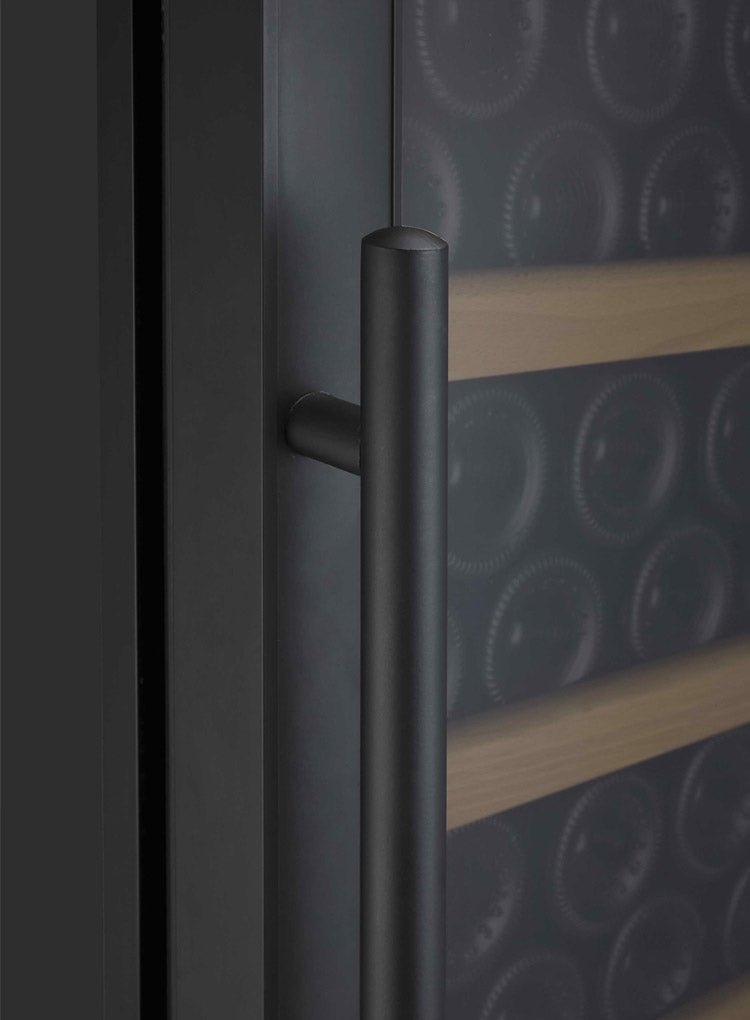

Handle

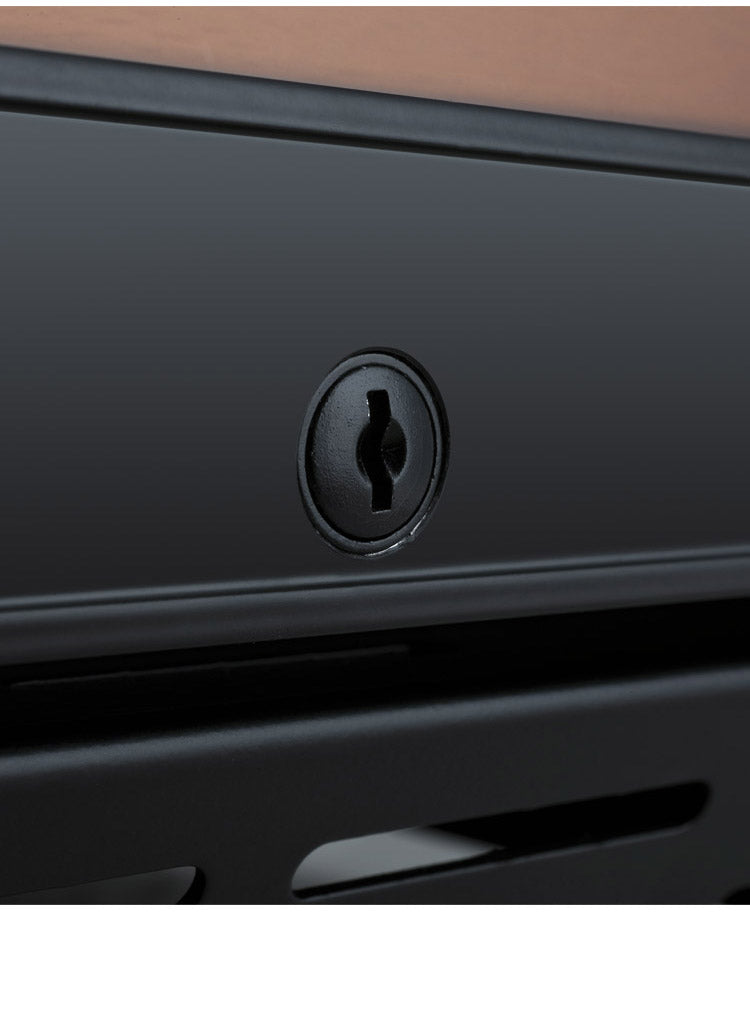

Locking Door
Upper rack out
Sturdy Wood Shelves
Fit 15 Bottles in the grooves
And another 13 on top
bottle capacity diagram
Lifestyle
2X-YHWR305-1B20 Dimensions
2X-YHWR305-1B20
2X-YHWR305-1B20 Features
Tru-Vino Cooling Technology
Door Open
Control Panel
Rack Out
Cooler Racks
Handle
Locking Door
Upper rack out
Sturdy Wood Shelves
Fit 15 Bottles in the grooves
And another 13 on top
bottle capacity diagram
Lifestyle
2X-YHWR305-1B20 Dimensions

63" Wide Vite II Tru-Vino 554 Bottle Dual Zone Black Side-by-Side Wine Refrigerator

SKU: BF 2X-YHWR305-1B20

63" Wide Vite II Tru-Vino 554 Bottle Dual Zone Black Side-by-Side Wine Refrigerator

SKU: BF 2X-YHWR305-1B20
/
  • series icon Spacious Vite coolers are suited for large collections
  • dimension icon 63.0" W × 78.5" H × 27.5" D
  • hardware icon Black french doors mounted on opposing hinges
  • zone icon Dual cooling zones with independent digital controls
  • capacity icon Holds up to 554 bottles* on 22 shelves
Shipping calculated at checkout.

Options

2X-YHWR305-1B2

Black

2X-YHWR305-1S2

Steel

Description

Made up of two single zone wine refrigerators with opposite hinged doors, the Allavino Vite II 2X-YHWR305-1B20 Wine Refrigerator is a stylish freestanding unit that can hold up to 554 bottles. Protect and preserve your wine collection with the latest innovation in wine storage technology by Allavino. Easily set your desired temperature with the easy-to-use digital control panels and trust in Tru-Vino Temperature Control Technology to protect your collection through consistent temperature maintenance. This wine refrigerator features sturdy hardwood shelves that can be easily adjusted to fit the needs of your collection. The smooth gliding shelves allow for convenient access to every bottle without disrupting the delicate wine maturation process.

YHWR305-1BR20 Features

Feature Highlights

Soothing blue light spilling over dark glass bottles

Blue LED Interior Lighting

At the push of a button, you can activate cool blue lighting to elegantly illuminate your collection. These lights are cooler than standard lighting, preventing harmful hot spots from forming. LEDs are more energy-efficient as well, reducing the cost of energy your cooler consumes as it protects your wines.

Internal fans circulate air inside the unit

Fan-Forced Cooling

An internal fan circulates air in the unit for additional cooling, helping to prevent large differences in temperature between the upper and lower shelves and reducing initial cool down time by 50%. The air circulation creates a frost-free environment so you will not have to worry about defrosting the cabinet.

Easy roll-out shelves

Easy Rolling Hardwood Shelves

Durable shelves glide out easily on ball-bearing tracks, affording you quick access to your entire collection. Thin metal racks with slotted venting allow thorough airflow while simultaneously preventing sagging. The innovative racking system was designed specifically to accommodate varying bottle sizes.

Downloads

Energy Guide Download
Parts Diagram Download
Manual Download

Details

Dimensions

Dimensions

Weight 719.0 lb
Width 63.0 in (160.0 cm)
Height 78.5 in (199.4 cm)
Depth 27.5 in (69.9 cm)
Full Depth 29.25 in (74.3 cm) depth with handle included
Application

Capabilities

Lock Locking door with key
Appearance

Appearance

Door Color Black
Body Color Black metal
Interior Black liner inside
Overlay Not compatible with overlay panel
Storage

Storage

Bottles Holds up to 554 wine bottles*
Shelf Count 22 storage shelves/drawers
Per ShelfShelves hold between 15 and 28 bottles
Hardware

Hardware

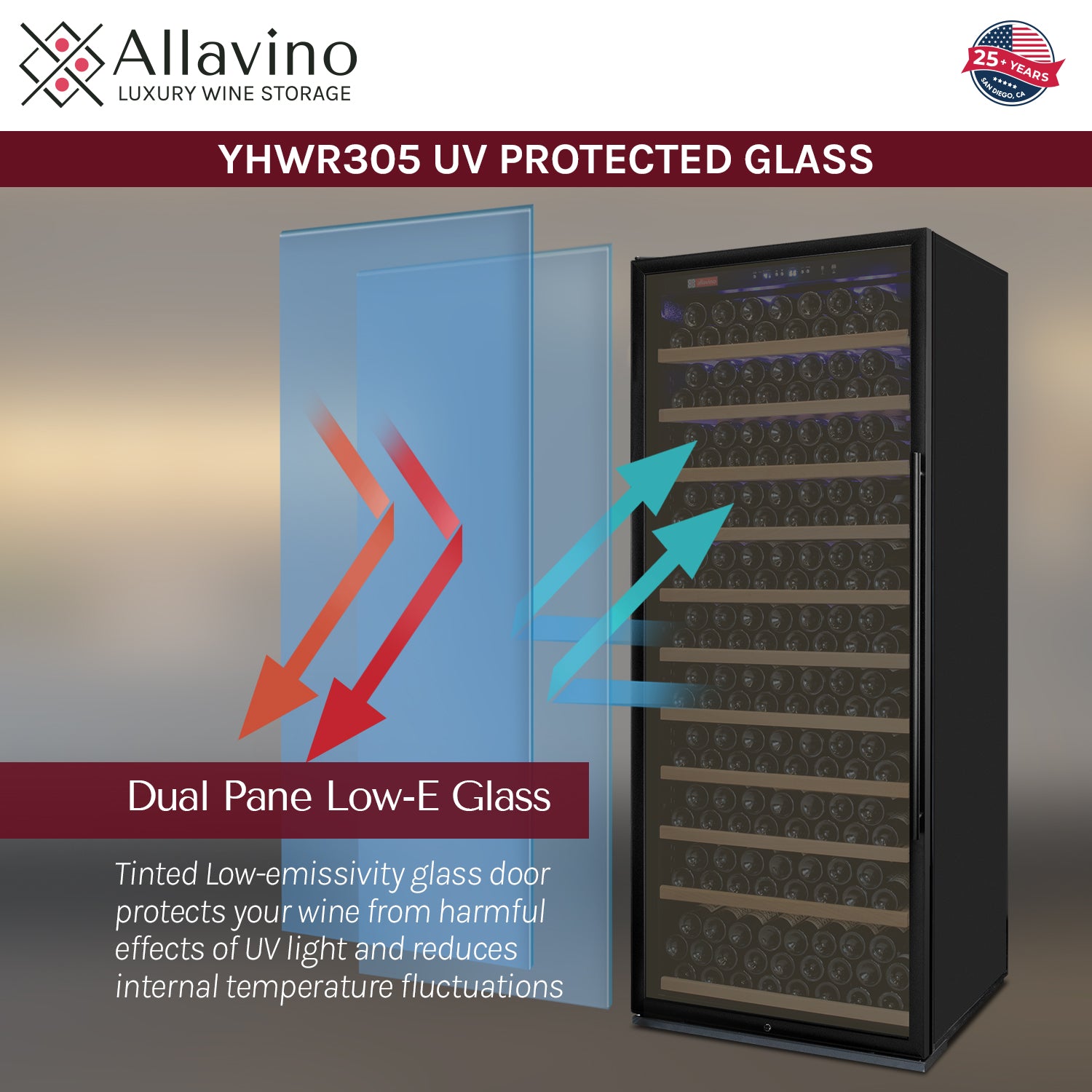

Glass UV-protective glass
Hinge French Door
Handles Two handle options included
Shelving

Shelving

Shelf Front Wood front shelves
Adjustment Removable and repositionable shelves
Pull-Out Glide-out shelves
Shelf Type Standard slat shelves
Cooling

Cooling

Refrigerant R600A (isobutane)
Thermostat Adjustable digital
Defrost Automatic system
Zones 2 cooling zones
Ventilation Front-venting
Electrical

Electrical

Power Requires 115V / 60Hz
Current Draws 2.3 Amps
Lighting Energy-Efficient Blue LEDs
Warranty

Warranty

Parts 1 year
Labor 1 year
Compressor 5 years (parts only)
